Design and Structure
Size - Specific Design
The "180A" in the product name indicates a particular size specification. This pipe clamp is precisely engineered to fit pipes with a diameter corresponding to the 180A standard, ensuring a snug and secure fit within the concrete pump truck's pipeline system. The design takes into account the exact dimensions of the pipes it is intended to hold, minimizing any potential for slippage or misalignment.
Model - Specific Features (HBG3.7)
The "HBG3.7" likely represents a unique set of design features or performance characteristics. It could imply specific engineering details such as the shape, thickness, or the type of materials used in the construction of the clamp. These features are tailored to meet the specific requirements of the concrete pump truck's operation, ensuring optimal functionality.
Robust Construction
Constructed from high - quality materials, typically a durable metal alloy, the pipe clamp is built to withstand the harsh conditions of concrete pump truck use. The material provides excellent strength, enabling it to endure the high - pressure forces exerted by the flowing concrete and the vibrations generated during the pumping process. The robust construction also contributes to its long - term durability, reducing the need for frequent replacements.
Working Principle
Secure Pipe Fixation
The primary function of the 180AHBG3.7 pipe clamp is to firmly secure pipes in place. When installed around the pipe, it exerts a uniform and consistent clamping force. This force creates a strong frictional grip that prevents the pipe from moving or vibrating loose, even under the dynamic forces experienced during concrete pumping.
Vibration Damping
In addition to securing the pipe, the pipe clamp helps dampen vibrations. The design of the clamp, along with the material properties, allows it to absorb and reduce the impact of vibrations caused by the pump's operation. This is crucial as excessive vibrations can lead to wear and tear on the pipes and their connections, potentially causing leaks or other damage.
Performance Features
High - Pressure Resistance
Designed to handle the high - pressure environment within the concrete pump truck's pipeline, the 180AHBG3.7 pipe clamp can withstand substantial pressure without deformation or failure. This ensures that the pipes remain securely fastened, maintaining the integrity of the pipeline system during the pumping process.
Given the exposure to moisture, concrete chemicals, and other potentially corrosive elements in the pump truck's working environment, the pipe clamp is equipped with corrosion - resistant properties. This helps to extend its service life, as it can resist rust and other forms of corrosion, maintaining its performance over time.
Compatibility
As a part of Zoomlion's concrete pump truck accessories, the 180AHBG3.7 pipe clamp is highly compatible with the existing pipeline components. It is designed to fit seamlessly into the overall system, allowing for easy installation and integration. This compatibility also simplifies maintenance and replacement procedures, as it can be easily swapped out when necessary.
Product Tags:
|
|

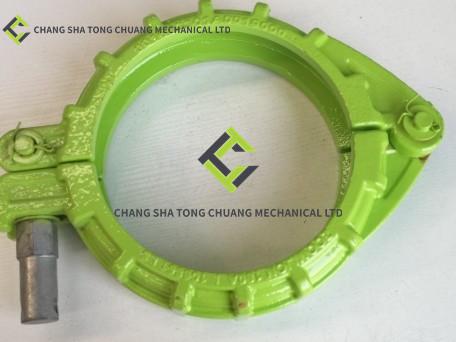

Zoomlion Concrete Pump Truck Accessories Pipe Clamp 180A \ HBG3.7 Images
|
